Changing the Lights on your FRITZ!Box

1. Log Into Your FRITZ!Box
  • Start by finding the "FRITZ!Box Password" on the underside of your router

    Label on the back of FRITZ!Box detailing the wifi and log in details
  • Using one of your devices, open your web browser of choice and go to http://192.168.178.1 (when connected to your router via WiFi or a Wire)
  • You'll then be shown a log in screen with an empty "Password" field, enter the found password and click "Log In"

    FRITZ!Box Interface box asking for a password and an option to log in

Note: You can also find these steps on our "How To" YouTube Video

2. System Settings

Now you're logged in, select the following menu options:

  • "System" on the left-hand side of the page

    Fritz!Box System Menu | Zen internet
  • "Buttons and LEDs" within this

    FRITZ!Box Buttons LEDs Menu | Zen internet
3. LED Display Settings

You can change the brightness of the lights or turn them off completely within the system tab:

  • "LED Display" tab at the top of the page

    FRITZ!Box LED Display | Zen internet

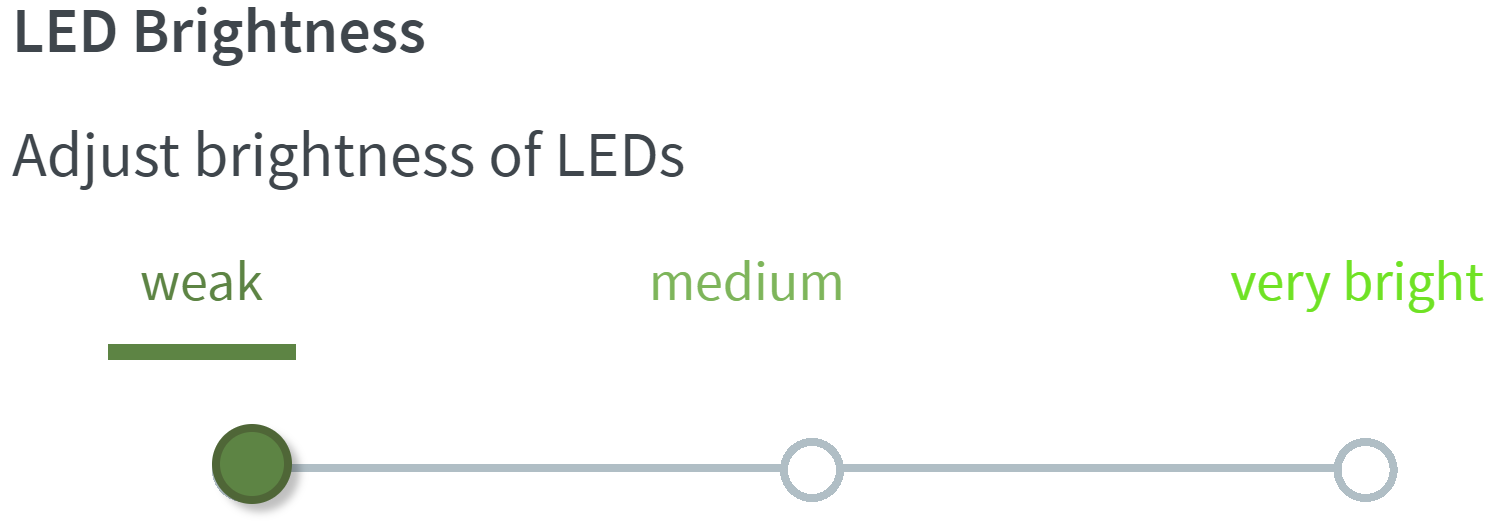

  • Change between "Weak, Medium and Very Bright" to change the light brightness

    FRITZ!Box LED Brightness | Zen internet

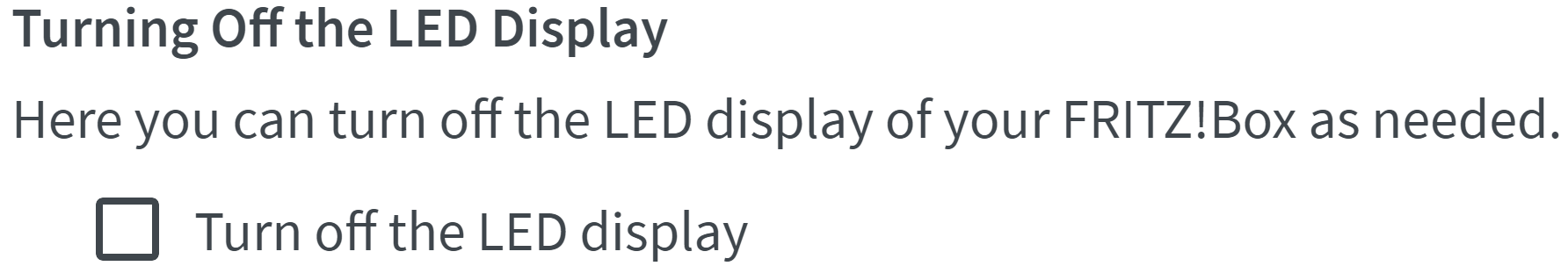

  • Select "Turn off the LED display" to turn off the lights all together

    FRITZ!Box Turning Off LED | Zen internet
  • Apply

    FRITZ!Box Apply | Zen internet
